• Fully interchangeable with conventional all-night NEMA photocells
• Offers significant energy savings compared with equivalent full-night photocells
• Available with GMT part-night switching or automatic GMT/BST (DLS) switching
• Eliminates the need for time clocks and other real-time devices
• Reduces operating costs through ultra-low power consumption (<100mW)
• Suitable for LED lighting loads up to 400W
• Direct retrofit solution for existing NEMA installations

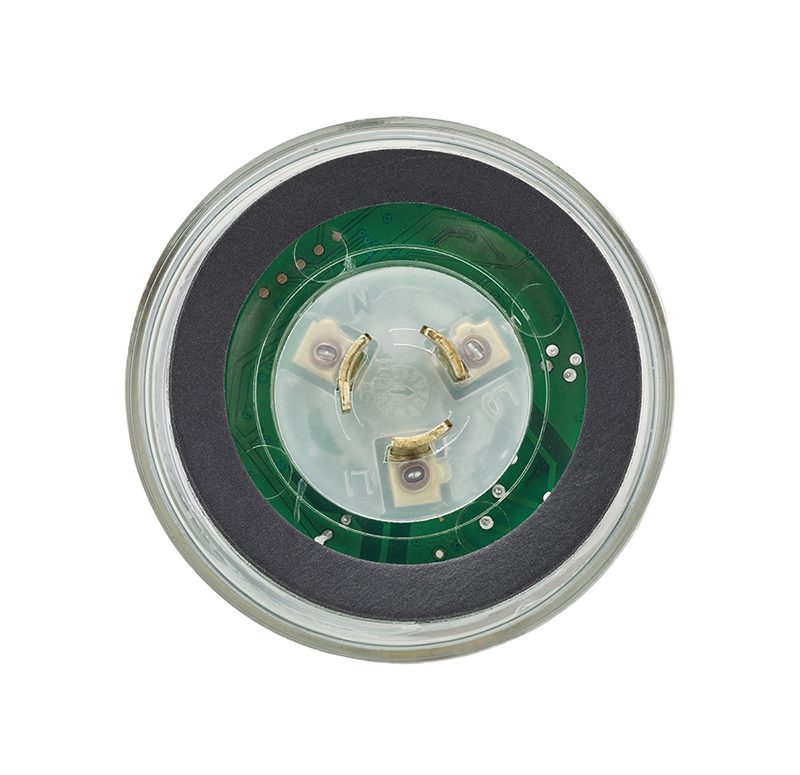

• Suitable for 3-pin and 5/7-pin NEMA sockets
• Programmable part-night operation
• Fit-and-forget design
• Electronic relay switching technology
• Filtered photodiode sensing
• Digital control circuitry
• UV-stabilised polycarbonate enclosure
• Compatible with LED & conventional lighting sources
• Multiple lux-level options available
• IP65 rated enclosure

Sensor:

Filtered Photodiode IC

Drift Negligible

Switching Technology:

Switching Technology: Electronic EM Relay Load Switching

Switching Regime in Lux and Time:

70 Lux / 35 Lux: Yes

55 Lux / 28 Lux: Yes

35 Lux / 18 Lux: Yes

Switching Ratio: 1:1 or 1:0.5

Switching Delay: 10 seconds

Load:

Maximum load for LED lighting: 400 Watts

Maximum load for High Pressure Sodium: 400 Watts

Maximum load for Metal Halide: 400 Watts

Maximum load for GLS or incandescent: 800 Watts

Supply and Consumption:

Voltage: 198-264

Surge Suppression: 38 Joules

Frequency: 50Hz

Consumption in Watts: 100mW

UMSUG Charge Code: 94 0001 1000 100

Operating Temperature:

Min / Max operating ambient temp range: -20 / +80°C

IP Rating: IP65

Warranty: 6 years

Compliance Standards:

BS5972, BS EN IEC 55015, BS EN 60529, BS EN IEC 6100-3-2, EN 6100-3-3, BS EN IEC 61000-4-2, BS EN IEC 61000-4-3, BS EN 61000-4-4, BS EN 61000-4-5, BS EN 61000-4-6 BS EN IEC 61000-4-11, BS EN 61547

Additional lux levels and part-night timings are available. Contact Customer Services for ordering information and order codes.
