Miniature

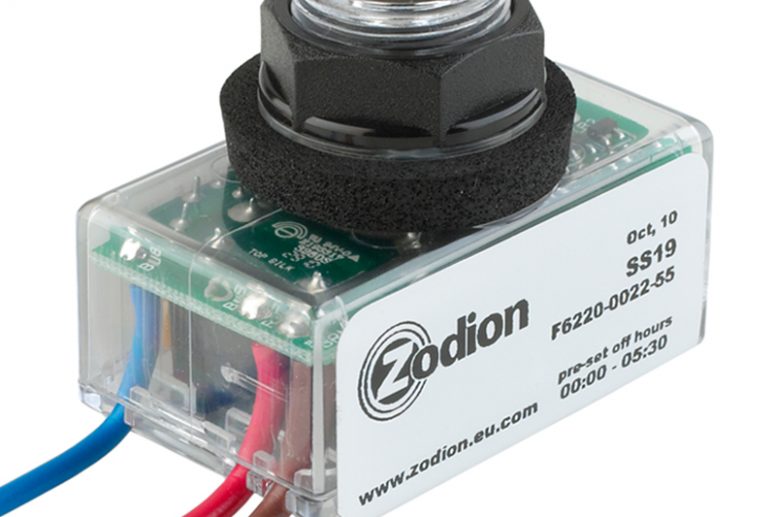

Miniature: The SS19 partnight photocell has been designed to offer accurate dimming and control, within a small and compact footprint. Offering all the same features as the SS9, in a smaller design, the SS19 range of miniature photocells is:

•  Compatible with most luminaire designs and specifications
•  Small 20mm fixing hole diameter
•  Minimal inatallation space required with dimensions of just 44mm(d), 31.5mm(w) and 53.5mm (l)

Flexible

Available pre-set to GMT part-night switching, or with automatic GMT/ BST (DLS) switching, the SS19 photocell is flexible to meet a number of requirements:

•  Option of a number of different factory settings, based on street lighting control requirements, for improved efficiencies
•  Suitable for use in most street lighting luminaires, with one-part NEMA option also available
•  Available in 70, 55 and 35 Lux Levels

Effective

With a housing that incorporates a special lens to optimise optical performance, the SS19 is extremely effective in streetlight switching.

•  Low power consumption of less than 0.25watts
• Part-night to off feature
• IP66 rating for prolonged outdoor use, once installed within the luminaire

• Type: EM Relay
• Sensor: Photodiode/Photo IC
• Voltage: 198 to 264VAC 50hz
• Switch Level: 70Lux (Other levels Available)
• Switching Diff: 1:0.5
• Typical Load: 1x400W HPS
• Operating Temp: -20°C to +75°C
• Switching Capacity: 5A or 60uF
• Enclosure Material: Polycarbonate
• Power Consumption: <0.25W
• Part Night Off times (Other timings available): 12.00 Midnight to 5.30am*
• IP Rating (correctly fitted) : IP66

The SS19 photocell is suitable for installation the following markets:

• UK
• EU
