• Finest optical sensor ensures product has a long and accurate life
• Unique circuitry incorporates a predictive transfer algorithm

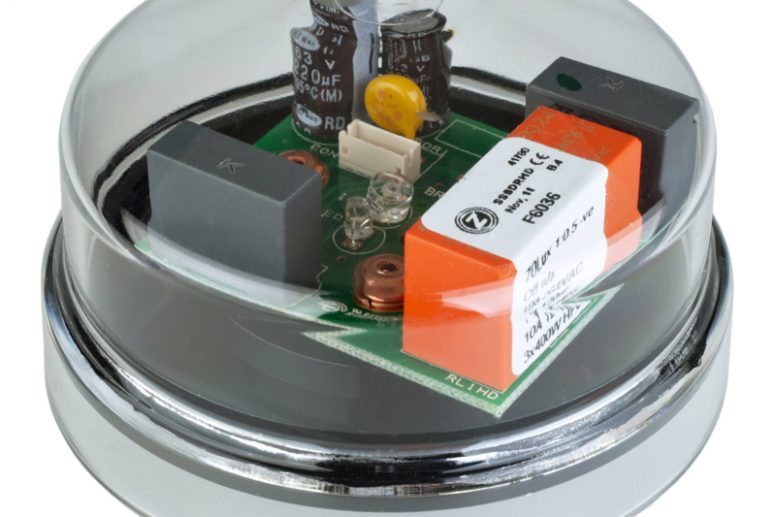

• HD option available for high load switching due to its rugged PCB design and component selection

• Available for either 3 pin or 5/7 pin NEMA photocell bases
• Switching delay to avoid irregular illumination and de-illumination due to brief changes in lux level
• Predictive Transfer Switching
• Filtered Photodiode
• Coloured banding available

Sensor:

Sensor: Filtered Photodiode

Switching Technology:

Switching Technology: Electronic EM Relay Load Switching

Switching Regime in Lux and Time:

70 Lux / 35 Lux: Yes

55 Lux / 28 Lux: Yes

35 Lux / 18 Lux: Yes

20 Lux / 2o Lux: Yes

Switching Ratio: 1:1 or 1:0.5

Switching Delay: 10 seconds

Load:

Maximum load for LED lighting: 250 Watts (SS5DR) 1000 Watts (SSDRHD)

Maximum load for High Pressure Sodium: 500 Watts (SS5DR) 1200 Watts (SSDRHD)

Maximum load for Metal Halide: 500 Watts (SS5DR) 1200 Watts (SSDRHD)

Maximum load for GLS or incandescent: 1200 Watts (SS5DR) 2400 Watts (SSDRHD)

Supply and Consumption:

Voltage: 198-264

Surge Suppression: 38 Joules

Frequency: 47-63 Hz

Consumption in Watts: <0.25

UMSUG Charge Code: 94 0001 1000 100

Operating Temperature:

Min / Max operating ambient temp range: -20 / +80°C

IP Rating: IP65 (standard) or IP66 / IP67

Warranty: 5 years

Compliance Standards:

BS5972, BS EN IEC 55015, BS EN 60529, BS EN IEC 61000-3-2, BS EN 61000-3-3, BS EN IEC 61000-4-2, BS EN IEC 61000-4-3, BS EN 61000-4-4, BS EN 61000-4-5, BS EN 61000-4-6, BSEN IEC 61000-4-11, BS EN 61547, RoHS. CE, UKCA
