Adaptable

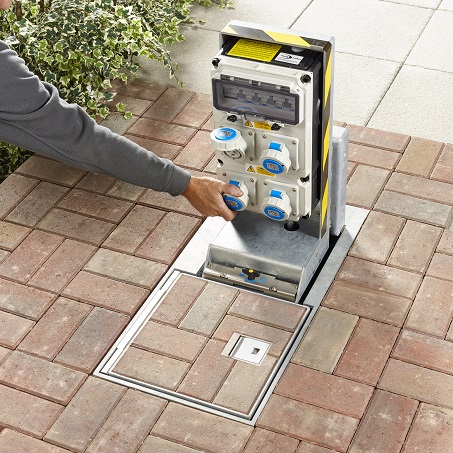

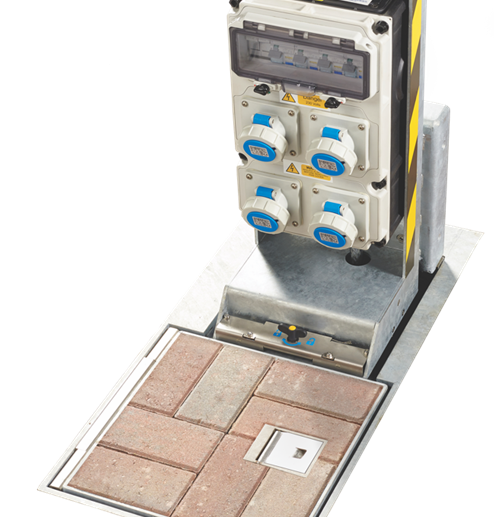

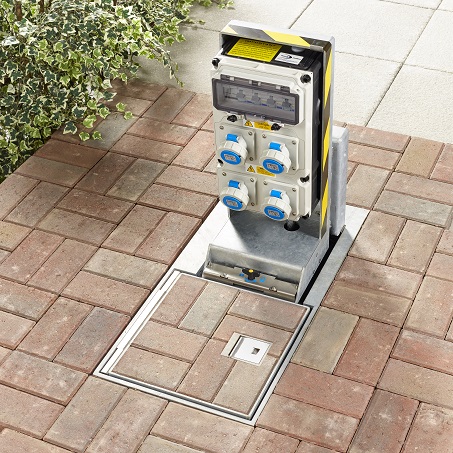

Suitable for use in a number of environments to meet various requirements, the Westminster flip-lid unit can not only provide power but data and metering information (optional extras).

The 50mm lid recess aids surface matching, which helps the unit to discreetly blend into its surrounding environment with a flush top surface. This ensures sympathetic design, aiding city planning and assisting public access when not in use.

Safe & Secure

Made from galvanised steel with stainless steel lock and hinges, the Westminster range is manufactured and tested in accordance with BS7671 and BSEN 61439, while benefiting from an IP67 rating.

• All components are fully earth bonded
• IP67 electrical enclosures used as standard
• Individual socket RCBO protection
• Stainless steel anti-vermin construction
• Positive drainage to suit 100mm pipe

Easy to use

The flush top surface, enhanced features and adaptability for earth leakage makes the Westminster suitable and safe for use in public environments.

• Lid lift assist on cover and main tower
• Fully operational in 60 seconds
• Cable entry plates for glands: incoming and outgoing cable (to tub)
• Catflap for use with trailing leads

The unit adheres to the following standards:

• BS EN ISO 1461 (Hot dipped galvanised)
• IP67 accordance to IEC60529
• Designed and manufactured in accordance with quality management system IS09001:2015
